CRISPR/Cas9 is a revolutionary tool that offers simplicity and flexibility for gene editing experiments. Stem cells are ideal candidates for editing, as they are highly renewable and expandable, and they can differentiate into multiple cell types. Human induced pluripotent stem (hiPS) cells offer the greatest utility due to their practically unlimited expansion and differentiation potential.
The sequential processes of somatic cell reprogramming to create patient-specific hiPS cells, CRISPR/Cas9 gene editing, and single-cell cloning uniquely enable researchers to study how a specific genetic modification can influence function. To create cell models for the discovery of disease etiology, progression, and treatment, isogenic cell lines can be created from healthy or sick individuals, then compared (Figure 1).
Figure 1. Human iPS cells offer a renewable source of clonal diseased or healthy cells.
Cells from a healthy individual can be reprogrammed to create an expandable population of healthy hiPS cells. This healthy hiPS cell population can be edited to insert a known or theorized mutation and then expanded clonally to yield a complementary cell line that only differs from the healthy cells by the introduced mutation. Later, this edited clonal cell line can be differentiated into a cell type relevant to the disease under study (e.g., neurons, as depicted in Figure 1). Alternatively, cells from a sick individual can be reprogrammed and expanded into a diseased hiPS cell line, and then gene editing can be used to correct the mutation thought to cause the disease. This corrected clonal cell line can also be differentiated into the cell type of interest. Both of these renewable sources of diseased and healthy cell models, controlled for genetic variability, can be used for a variety of downstream applications to study and treat disease.
Challenges of editing hiPS cells and novel solutions
Despite the power and utility of CRISPR/Cas9 as an editing tool, some challenges must be overcome, particularly when editing hiPS cells. Delivery of Cas9 and the target-specific sgRNA requires an efficient method with low toxicity. Off-targt effects should be minimized by the experimental design: choose a good sgRNA with the fewest possible off-target effects, control the amount of Cas9 introduced into the cells, and limit the time that Cas9 is present in the cells. Once edited, single cells with the desired mutation need to be expanded clonally, an inefficient process. Throughout all stages of editing and single-cell-expansion experiments, hiPS cells need to be highly proliferative and pluripotent.
To address the editing challenges, we have developed a system that is based on the delivery of recombinant Cas9 protein complexed with a sgRNA targeting the gene of interest (Cas9/sgRNA ribonucleoproteins [RNPs]) via cell-derived nanovesicles, called gesicles. Gesicles are released from the plasma membrane of mammalian producer cells and can carry any cargo, such as proteins and protein complexes. CRISPR/Cas9 gesicles are generated by the coexpression of Cas9 protein, a customer-designed sgRNA, and other proteins that stimulate gesicles to be released from the producer cell membrane. Once gesicles have been made, they can be harvested, concentrated, and applied to hiPS cells, where the active Cas9/sgRNA complex is released and transported to the nucleus for efficient gene editing. The use of gesicles allows a footprint-free editing method, wherein the dose of Cas9/sgRNA RNPs and their presence in the cell is limited, reducing off-target effects as compared to plasmid-based methods.
After gesicle-based delivery of the editing machinery into hiPS cells, cells must survive the process of single-cell cloning—a major bottleneck to obtaining clones with the modification of interest. Delicate hiPS cells typically grow in colony- and/or feeder-dependent conditions, and isolating them as single cells removes survival and growth signals, reducing their viability. Promoting survival and proliferation at the single-cell level is critical for expansion of any clonal colonies containing the mutation of interest generated by the gene editing process.
With this system, hiPS cells are grown as a homogeneous monolayer and are enzymatically passaged as single cells that maintain pluripotency with a stable karyotype for more than 20 passages (Asplund et al. 2016). The same reagents are used for monolayer and single-cell culture, reducing variability. When plated as single cells in wells of a 96-well plate, at least 50% of those seeded cells will proliferate into clonal colonies. In the following experiments, we demonstrate that the Cellartis iPSC Single-Cell Cloning DEF-CS Culture Media Kit combined with Guide-it CRISPR/Cas9 Gesicle Production System is ideal for performing footprint-free gene editing and single-cell cloning of edited hiPS cells.
Results
Maintenance of pluripotency after editing: AcGFP1 knockout (KO) test case
An initial proof-of-concept experiment was performed to confirm that editing hiPS cells using gesicles carrying Cas9-sgRNA RNPs does not influence pluripotency (Figure 2, Panel A). First, cells from Cellartis Human iPS Cell Line 22 (ChiPSC22) were modified to stably express AcGFP1, and then these cells were cultured using the DEF-CS culture system in a 48-well plate. Next, cells were treated with 30 µl of gesicles (produced using the Guide-it CRISPR/Cas9 Gesicle Production System) containing RNP complexes with sgRNA targeting AcGFP1. The cells were then grown for nine days according to the Cellartis DEF-CS 500 Culture System User Manual. After, cells were analyzed by flow cytometry or immunocytochemistry for AcGFP1 and pluripotency markers. Untreated cells (negative control) were grown in parallel for the same amount of time as treated cells.
To determine pluripotency and AcGFP1 knockout efficiency in gesicle-treated cells, cells were labeled with a fluorescently labeled antibody specific to the pluripotency marker SSEA-4. Cells were analyzed via flow cytometry and the percentages of cells that were AcGFP1 positive and SSEA-4 positive were quantified (Figure 2, Panel B). The negative control hiPS cells were ~95% AcGFP1 positive and over 99% SSEA-4 positive, indicating the cells were unedited and pluripotent. Treatment of hiPS cells with gesicles carrying Cas9-sgRNA RNP complexes targeting AcGFP1 resulted in knockout of AcGFP1 expression in 80% of the cells. Furthermore, pluripotency—as determined by SSEA-4 expression—was maintained in 99% of analyzed cells.
Additional confirmation of knockout and pluripotency was performed using immunocytochemistry (Figure 2, Panel C). Control and gesicle-treated hiPS cells were assessed for AcGFP1 expression (green), labeled with an antibody specific to pluripotency marker Oct-4, visualized with a fluorescent-labeled secondary antibody (red), and nuclear-labeled with DAPI (blue). An isotype control for the secondary antibody was used as a negative control in both samples. In accordance with the flow cytometry data, expression of AcGFP1 in gesicle-treated cells was knocked out in the majority of cells, despite AcGFP1 being expressed in nearly all control cells. Nearly all hiPS cells were Oct-4 positive, supporting the conclusion that editing using gesicles does not alter pluripotency.

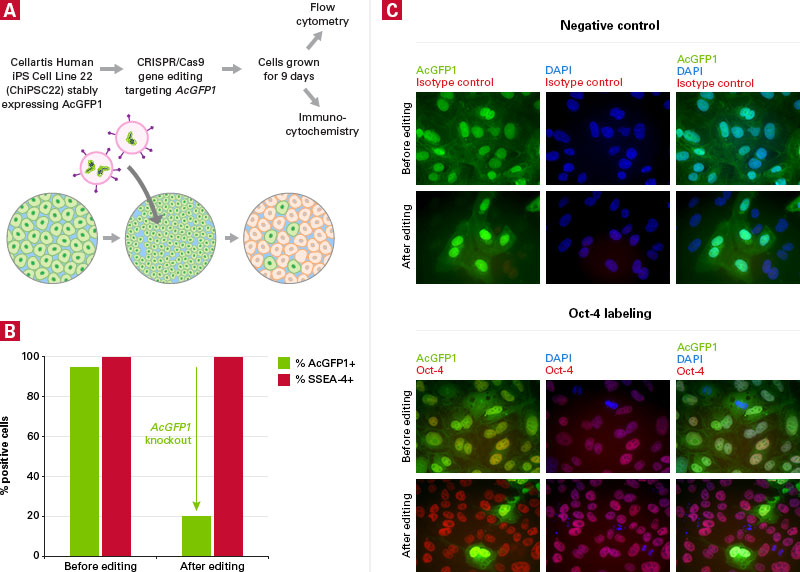

Figure 2. Gesicle-mediated knockout of AcGFP1 hiPS cells does not alter pluripotency when performed in the DEF-CS culture system. Panel A. Gesicle-based delivery of Cas9-sgRNA RNPs was used to knock out AcGFP1 in the Cellartis Human iPS Cell Line 22 stably expressing AcGFP1. Cells were cultured under non-differentiating conditions using the Cellartis DEF-CS 500 Culture System. After editing, cells were analyzed for AcGFP1 expression and pluripotency via flow cytometry (Panel B) and immunocytochemistry (Panel C). As a negative control, untreated parental cells were grown in parallel for the same amount of time. The quantification of AcGFP1 expression in the edited cells revealed an 80% knockout. Furthermore, pluripotency of the parental and edited cell populations was maintained, with nearly 100% of cells expressing SSEA-4 (assessed via flow cytometry in Panel B) and Oct-4 (assessed via immunohistochemistry in Panel C).
Workflow for generating clonal hiPS cell lines deficient in CD81
After concluding from our proof-of-concept experiment that a successful gesicle-based knockout of a virally integrated gene can be achieved, we chose to target CD81, an endogenous membrane glycoprotein that forms complexes with integrins and plays a critical role in the infection process that leads to hepatitis C (Figure 3).

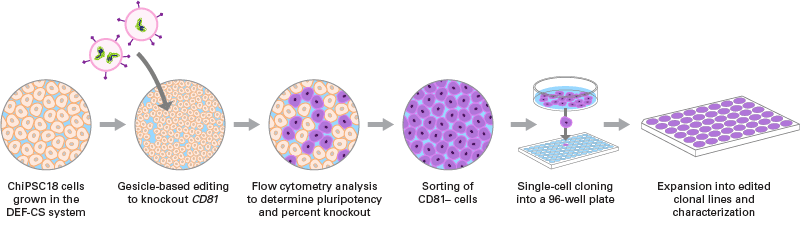

Figure 3. Workflow for targeted knockout of CD81, an endogenous gene in hiPS cells, using the Cellartis iPSC CRISPR/Cas9 Gesicle and Single-Cell Cloning System. hiPS cells can be cultured, edited, and clonally expanded using the Cellartis iPSC CRISPR/Cas9 Gesicle and Single-Cell Cloning System. Before and after using this system, hiPS cells are grown in the DEF-CS culture system, which maintains cells as a karyotypically stable and pluripotent monolayer.
Knockout of CD81 in cells from Cellartis Human iPS Cell Line 18 (ChiPSC18) was performed according to the Guide-it CRISPR/Cas9 Gesicle Production System user manual. 30 µl of gesicles containing Cas9 in an RNP complex with sgRNA specifically targeting CD81 was added to the cells. Flow cytometry analysis of the total population was performed seven days later to determine the CD81 KO efficiency and overall pluripotency levels. Flow cytometry was employed to isolate the sorted population of CD81-negative cells. Single cells from this sorted population were then seeded into each well of a 96-well plate by limiting dilution. Single hiPS cells were expanded into clonal lines using the Cellartis iPSC Single-Cell Cloning DEF-CS Culture Media Kit and characterized for pluripotency and karyotype.
Successful editing of human iPS cells and maintenance of pluripotency
After gesicle treatment, assessment of CD81 expression by flow cytometry identified that 57.8% of gesicle-treated hiPS cells were CD81 negative (Figure 4, Panel A). We also interrogated the population of sorted, CD81-negative cells for the expression of pluripotency markers (Figure 4, Panel B) and identified that successfully edited hiPS cells were 92.6% Oct-4 positive, 99.7% TRA-1-60 positive, and 99.99% SSEA-4 positive. Taken together, these data indicate that hiPS cells expanded in the DEF-CS culture system can be successfully edited using gesicles while retaining their pluripotency.

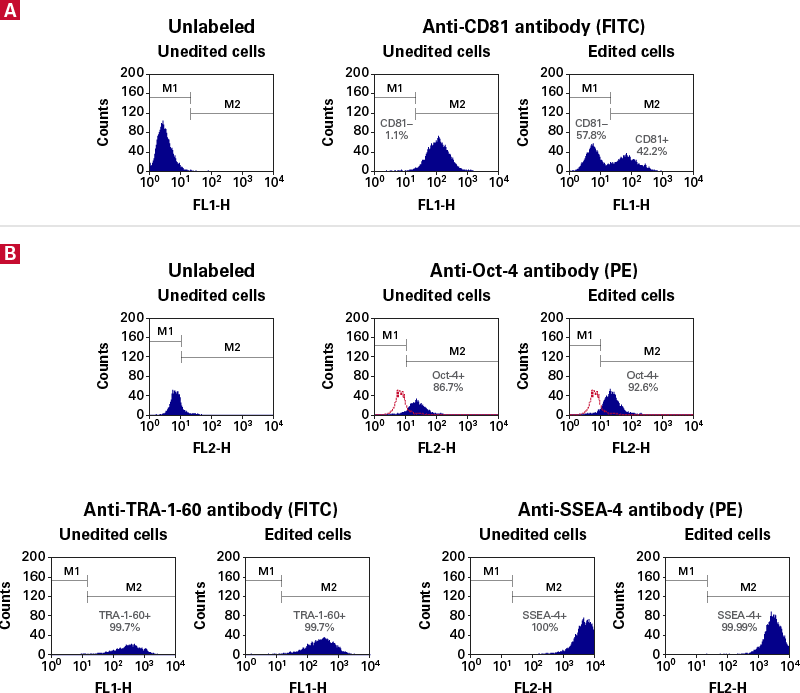

Figure 4. CD81-negative hiPS cells remain pluripotent in the DEF-CS culture system. Panel A. Gesicle-based delivery of Cas9-sgRNA RNPs was used to knock out CD81 in ChiPSC18 cells. Cells were cultured under non-differentiating conditions using the Cellartis DEF-CS 500 Culture System. After editing, cells were analyzed for CD81 expression via flow cytometry. As a negative control, unedited parental cells were grown in parallel for the same amount of time. Quantification of CD81 expression in the gesicle-treated cells revealed a 57.8% knockout efficiency. Panel B. CD81-negative cells were examined for pluripotency markers Oct-4, TRA-1-60, and SSEA-4. Pluripotency of parental (negative control) and edited (CD81–) cell populations was maintained, with 92.6% of edited cells expressing Oct-4, 99.7% of edited cells expressing TRA-1-60, and ~100% of edited cells expressing SSEA-4.
Following gesicle treatment, CD81-negative hiPS cells sorted via flow cytometry were counted using a hemocytometer. Limiting dilution was performed to achieve a final theoretical concentration of 30 cells/9,600 µl. Next, 100 µl of the final cell suspension was added to each well of a 96-well plate (reaching a final theoretical concentration of 0.3 cells/well). This increased the likelihood of obtaining wells containing only single cells and minimized the existence of doublets, which prevent the derivation of a clonal population. Following two weeks of culture, we identified 20 emerging colonies, yielding a calculated single-cell survival efficiency of ~67% (Table I). These data demonstrate that the Cellartis iPSC Single-Cell Cloning DEF-CS Culture Media Kit combined with Guide-it CRISPR/Cas9 Gesicle Production System enables highly efficient survival of single hiPS cells.
Table I. Highly efficient survival of edited clones grown in the Cellartis iPSC CRISPR/Cas9 Gesicle and Single-Cell Cloning System.
Single-cell cloning with the DEF-CS system
Theoretical number of single cells plated
Number of emerging colonies from single cells at 2 weeks
Calculated single-cell survival
30
20
67%
Typical success rates for the generation of clonal colonies from a single-cell cloning experiment range from 1–5%. Using the DEF-CS cell culture component of the Cellartis iPSC Single-Cell Cloning DEF-CS Culture Media Kit, we achieved an unparalleled survival rate of 67%.
Maintenance of pluripotency in expanded hiPS cell clones
Twelve of the emerging colonies from above were selected and expanded according to the user manual for the Cellartis iPSC Single-Cell Cloning DEF-CS Culture Media Kit. Once scaled up, each individual clonal line was assessed for pluripotency and knockout of CD81 using flow cytometry (Figure 5). All clones expressed high levels of Oct-4 (88–98% positive), TRA-1-60 (97–99% positive), and SSEA-4 (98–99% positive). Moreover, all lines were found to be CD81 deficient. These data show that pluripotency markers in the expanded clones are maintained at levels comparable to those in the parental line, ChiPSC18. Thus, using the Cellartis iPSC Single-Cell Cloning DEF-CS Culture Media Kit combined with Guide-it CRISPR/Cas9 Gesicle Production System, we successfully knocked out endogenous CD81 from a starting line and generated 12 new, edited lines that were still pluripotent.
Figure 5. Pluripotency was maintained in edited hiPS cell clones that were seeded as single cells. Individual, edited (CD81 knockout) hiPS cells were expanded into clonal lines and analyzed for expression of CD81 and three pluripotency markers via flow cytometry using antibodies against CD81, Oct-4, TRA-1-60, and SSEA-4. The parental hiPS cell line, ChiPSC18, was used as a control. As expected, all edited clones exhibited the loss of CD81 expression. Pluripotency was maintained in all edited clonal lines, as evidenced by the persistent expression of the three pluripotency markers.
Occurrence of a diverse set of indels in hiPS cell clones from the CD81 knockout experiment
We next examined the specific base-pair (bp) insertions and deletions (indels) created during the CRISPR/Cas9 editing process in the clones using the Guide-it Indel Identification Kit. Because Cas9-induced double-strand breaks are mainly repaired via the error-prone, nonhomologous end joining (NHEJ) DNA repair pathway, every cell that is edited should have a unique set of indels at the targeted gene—in this experiment, CD81. Accordingly, we saw a wide range of indels in the different clonal cell lines (Figure 6 and Table II). In some cases, CD81 knockout was accomplished via relatively small indels. For example, Clone #5 had only a 10-bp insertion/4-bp deletion on one allele and a 1-bp insertion on the other allele at the editing site. Conversely, some indels were much larger; Clone #3 had an 18-bp deletion on one allele and a 228-bp insertion on the other allele. Intriguingly, the sequence of the 228-bp insertion corresponded to a homologous sequence on chromosome 4, indicating that a different chromosome may have been used as a repair template. Taken together, these data demonstrate the diversity of indels created by CRISPR/Cas9 editing and highlight the utility in creating and screening multiple clones to account for this variability.
Figure 6. Graphical representation of indels created at the CD81 target site in different CRISPR/Cas9-edited hiPS cell clones. The genomic CD81 region of each clone was PCR amplified and sequenced using the Guide-it Indel Identification Kit to obtain detailed sequence information. The results show that each clone has a unique set of biallelic indels that knock out CD81. See Table II for a tabular representation of these data.
Table II. Tabular representation of the sizes and locations of indels created at the target site in CD81 for different CRISPR/Cas9-edited hiPS cell clones.
Diversity of indels in CRISPR/Cas9 gesicle-treated hiPS cell clones
Clone #
1
2
3
4
5
6
7
8
9
10
11
12
Indels (bp)
Allele 1
3/ –10
–32
+228 (chr4)
–39
+10/ –4
–24
–24
–36
+25/ –262
–11
+63 (chr4)/ –3
+181
Allele 2
–25
–32
–18
+169 (chr8)
+1
+2/ –26
–24
+4/ –17
–7
–533
+63 (chr4)/ –3
+181
Results show that each clone has a unique set of indels that knock out CD81. For each allele, “+” values indicate the number of inserted nucleotides, while “−” values indicate the number of deleted nucleotides. If the insertion corresponds to another part of the genome, that chromosome is shown between parentheses.
Normal karyotypes observed in edited hiPS cells
CRISPR/Cas9-mediated editing and single-cell cloning can be harsh on hiPS cells. Traditionally, these processes can force selective pressures that favor unintended mutations to the karyotype, conferring competitive advantages to in vitro growth. These karyotypic abnormalities render the cells unsuitable for study. Consequently, it is essential that the karyotype remains unaltered for multiple passages after editing.
To confirm karyotype stability, we examined four of the clonal lines, each of which had been expanded from one single cell to a confluent line in a 10-cm dish over a period of approximately one month (Figure 7). All lines were found to have normal, stable karyotypes. Thus, these data show that the Cellartis iPSC Single-Cell Cloning DEF-CS Culture Media Kit combined with Guide-it CRISPR/Cas9 Gesicle Production System effectively edits and expands single-cell hiPS cell clones without introducing karyotypic abnormalities.

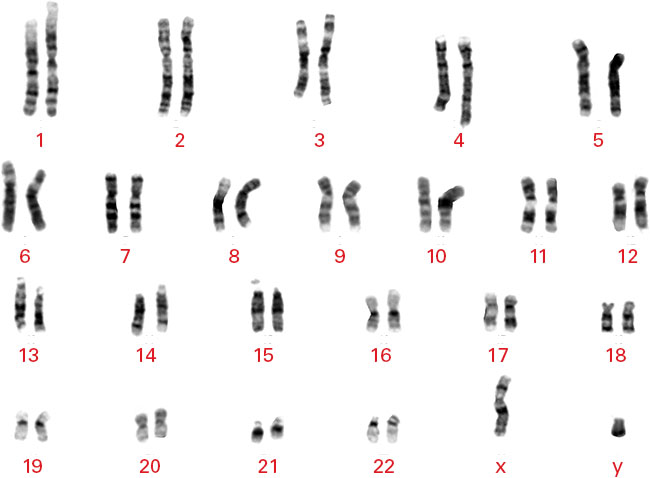

Figure 7. hiPS cell clones that have been edited via gesicles maintain a stable karyotype after editing and clonal expansion. The karyotypes of five edited clonal cell lines were analyzed. All clonal lines showed the expected 46, XY karyotype of the original ChiPSC18 cell line. Clonal cell line #8 is shown as an example.
Conclusions
Combining the Cellartis iPSC Single-Cell Cloning DEF-CS Culture Media Kit with the Guide-it CRISPR/Cas9 Gesicle Production System provides an efficient and effective method to generate clonal lines of edited hiPS cells. This system can enable high editing efficiency, with no discernible effect on hiPS cell health or pluripotency. Single-cell seeding of edited hiPS cells using this combined method resulted in high survival of pluripotent, edited clones, yielding a diverse set of edited clonal lines. Critically, the expanded lines maintain a normal karyotype, rendering the cells suitable for further investigation and use in screening and disease modeling.
Methods
Cell culture
Cellartis human iPS cells from the ChiPSC22 line (Figure 2) and the ChiPSC18 line (Figures 3–7 and Table I) were grown in the Cellartis DEF‑CS 500 Culture System before editing. Gesicles containing Cas9-sgRNA complexes were produced, harvested, and used to edit ChiPSC22 cells using the Guide-it CRISPR/Cas9 Gesicle Production System. After single-cell cloning and expansion into 48-well plates using the Cellartis iPSC Single-Cell Cloning DEF-CS Culture Media Kit, clonal colonies were returned to the Cellartis DEF‑CS 500 Culture System for further expansion prior to indel analysis (Figure 6 and Table II) and karyotyping (Figure 7). Please refer to the Cellartis DEF‑CS 500 Culture System User Manual, the Guide-it CRISPR/Cas9 Gesicle Production System User Manual and the Cellartis iPSC Single-Cell Cloning DEF-CS Culture Media Kit User Manual for specific culture conditions and protocols.
Flow cytometry
Labeling of Oct‑4 was performed by cell fixation and permeabilization followed by an incubation with anti-Oct‑4-PE antibody (BD Pharmingen; 20 µl for 1 x 106 cells) in PBS for 30 minutes.
Cell labeling of extracellular proteins or markers was performed following standard labeling procedures. In Figure 4, Panel A, cells were incubated for 30 minutes with anti‑SSEA‑4-PE (BD Pharmingen; 20 µl for 1 x 106 cells), anti-TRA‑1‑60-FITC (BD Pharmingen; 20 µl for 1 x 106 cells), or anti-CD81-FITC (BD Pharmingen; 20 µl for 1 x 106 cells) antibodies. In Figure 4, Panel B, cells were incubated simultaneously with anti‑SSEA‑4 and anti-TRA‑1‑60 antibodies, since they were labeled with different fluorophores (PE and FITC, respectively).
Immunocytochemistry
ChiPSC22 cells were grown in chamber slides until fixation with 4% paraformaldehyde. Cell permeabilization was achieved with 0.5% Triton X-100 for 5 minutes. After washing with PBS and blocking for 30 minutes (IHC/ICC Blocking Buffer - Low Protein; eBioscience), cells were incubated with anti-Oct‑4 antibody (diluted 1:150; eBioscience) or an IgG2a K isotype control (diluted 1:150; eBioscience) for one hour. After the incubation period, cells were washed and mounted with an antifading reagent containing DAPI (VECTASHIELD Antifade Mounting Medium with DAPI; Vector Laboratories).
Indel analysis
Indels within each edited clonal cell line were determined using the Guide-it Indel Identification Kit, following the kit′s user manual.
Karyotyping
Analysis of the karyotypes of ChiPSC18 cell lines was performed by Cell Guidance Systems.
References
Asplund, A. et al. One Standardized Differentiation Procedure Robustly Generates Homogenous Hepatocyte Cultures Displaying Metabolic Diversity from a Large Panel of Human Pluripotent Stem Cells. Stem Cell Rev. Reports12, 90–104 (2016).
Feng, Q. et al. Scalable Generation of Universal Platelets from Human Induced Pluripotent Stem Cells. Stem Cell Reports3, 817–831 (2014).
Valton, J. et al. Efficient strategies for TALEN-mediated genome editing in mammalian cell lines. Methods69, 151–170 (2014).
